How to setup billing/rate plan in ICTBroadcast?

ICTBroadcast has an integrated billing system and allows real-time control of calls and campaigns according to available funds. To set billing/rate-plan following steps are listed below:

Regions

There is a list of regions available in the system if you need to add a new region specifically ICTBroadcast facilitates adding new regions. There are following steps are listed below:

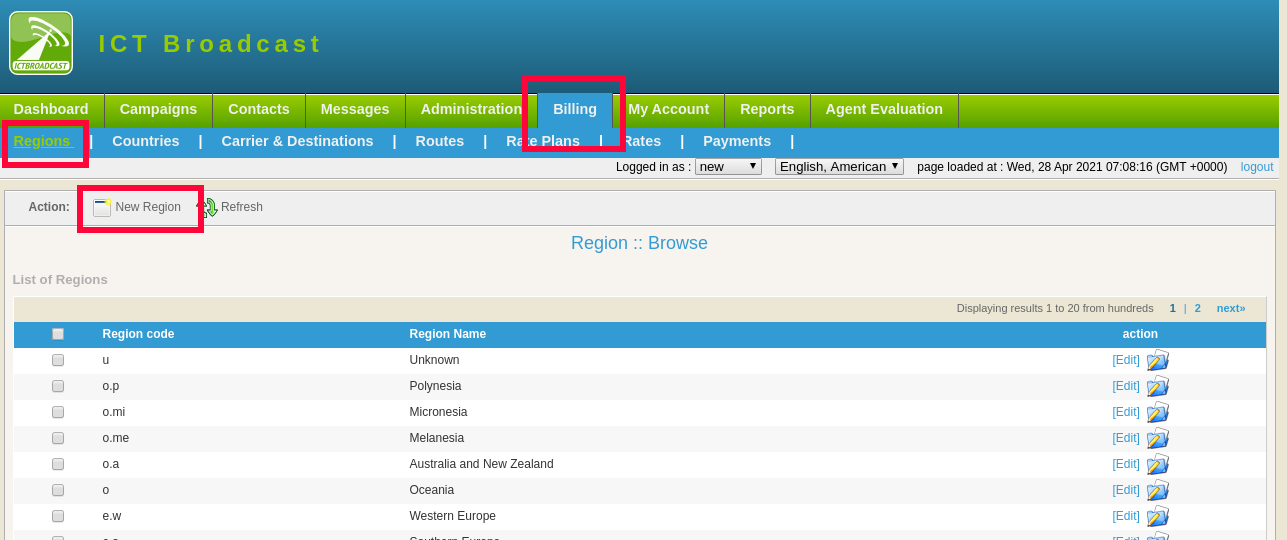

Click on the Billing main menu, then click on the Regions menu.
A list of regions code and names will be available on the page as shown:

region list in ICTBroadcast

To Add New Region

Click on the new region button, a new region form will open that contain the following fields:
Type region code and region name in the text box.
Click on the Save button, a new region will be added to the regions list.

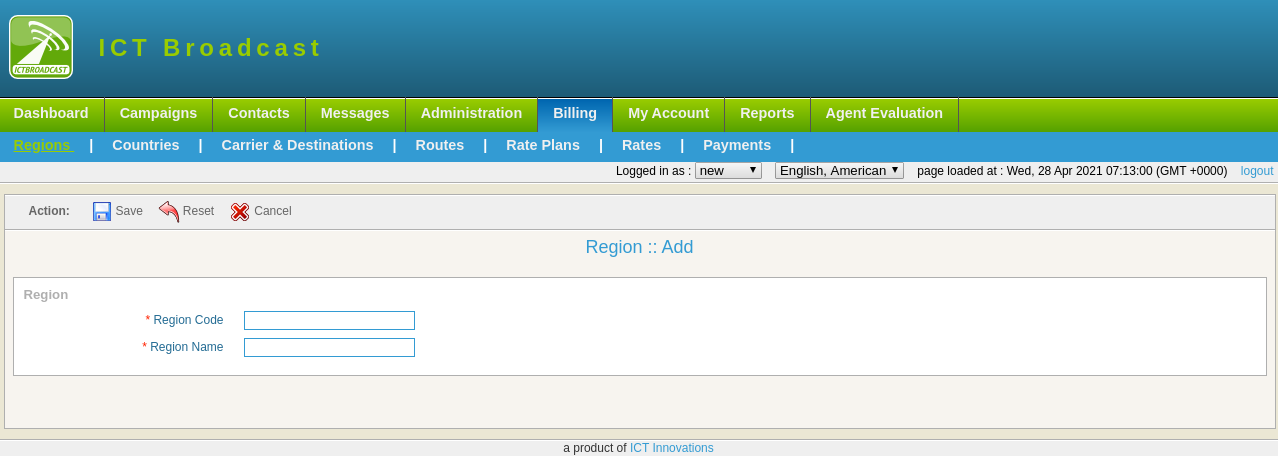

region form in ICTBroadcast

Countries

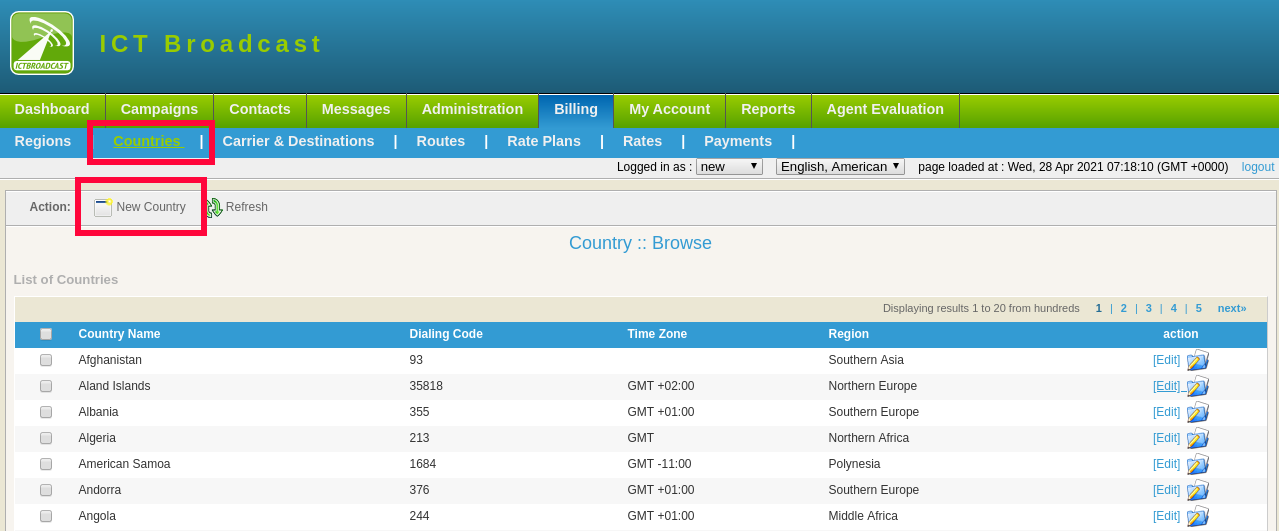

Click on the Billing in the main menu, then click on the countries menu.
A list of countries’ names, dialing code, time zone available on the page.

country in ICTBroadcast

Add New Country in ICTBroadcast

Click on the New Country button a new country form will open that contain the following fields:
Type country name and code name in the text box
Type country dialing code
Select region and time zone from the dropdown.
Click on the Save button, a new country will be added to the list.

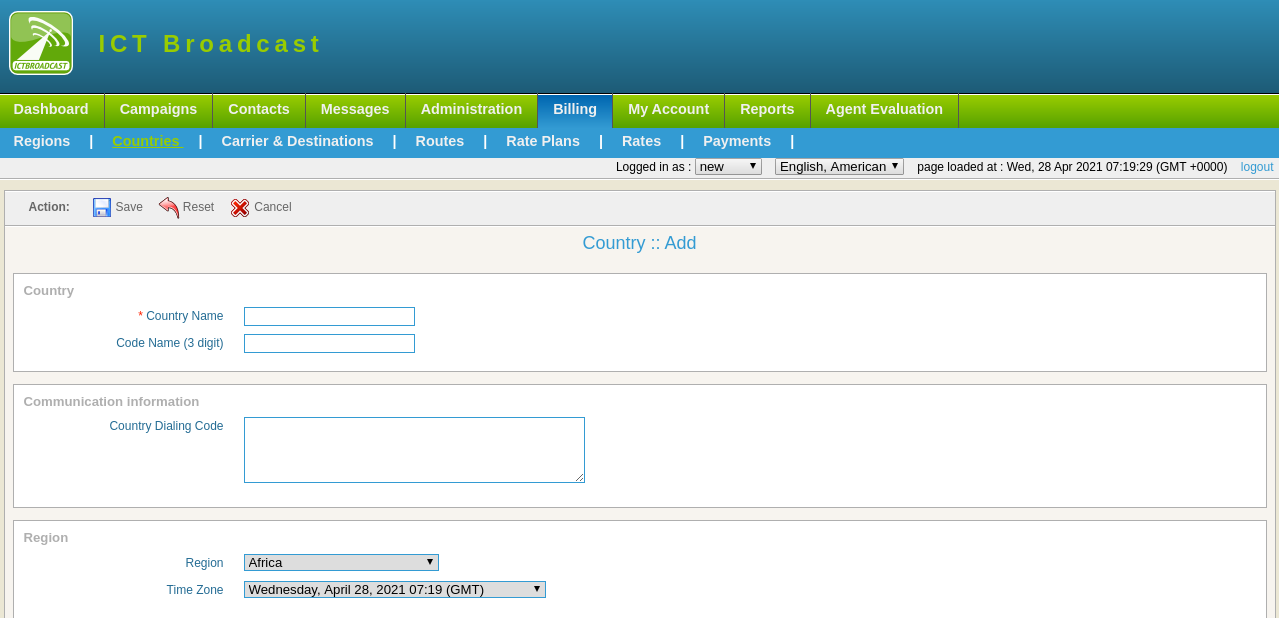

country form in ICTBroadcast

Carrier and Destinations in ICTBroadcast

ICTBroadcast provides a complete route and rate management system. You can manage destinations, configure routes, and set destination rates. The following steps are listed below:
Admin can add, edit, delete any destination info from the list.

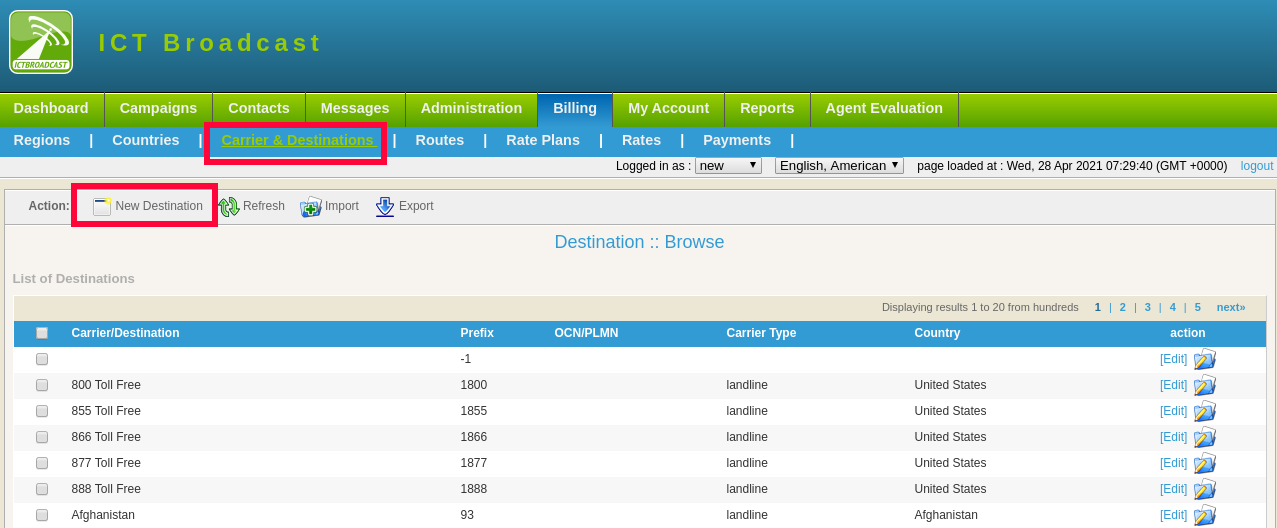

carier and destination form in ICTBroadcast

How to Add new destination in ICTBroadcast

Click on the New Destination button, a destination form will open.
Fill in the required fields such as:

  • Type Carrier Name/Destination in the text box
  • Type prefix number in the text box
  • Type OCN or PLMN (MCC/MNC) in the text box
  • Select carrier type from the drop-down list
  • Select country and time zone from the drop-down
  • Click on the Save button, the new destination will be added to the list as shown

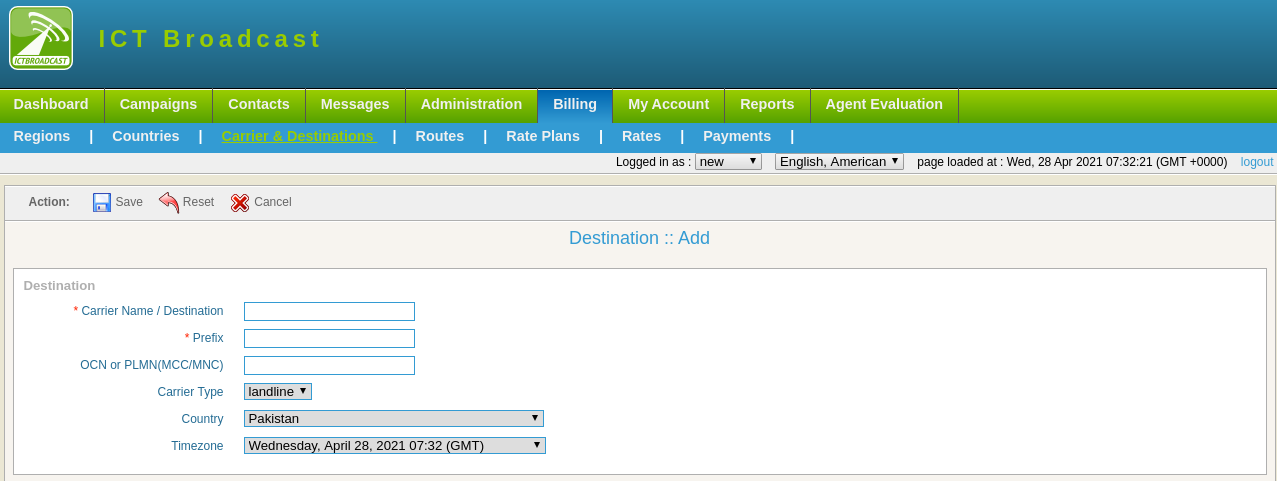

destination form in ICTBroadcast

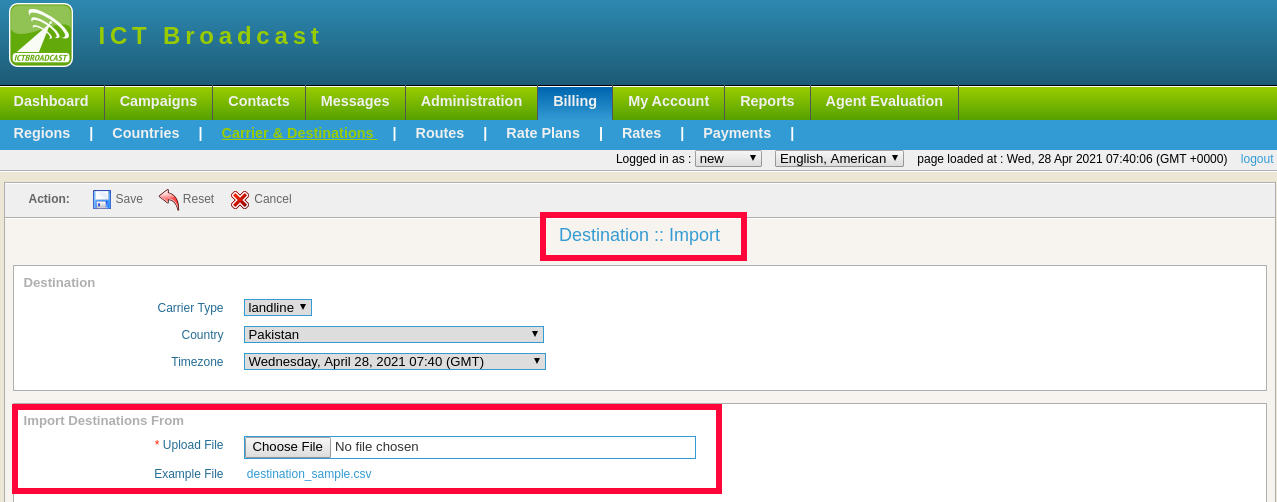

Click on the Import button to upload a list of destinations, a form will appear on the page fill the required fields such as:
Select carrier type from the drop-down list

Select country and time zone from the drop-down
Click on choose file button to upload a CSV file that contains the destinations list.
Click on the Save button, destination list will be added to the list as shown:

destination import in ICTBroadcast

Routes

In ICTBroadcast following routes are available according to the country/destination. You can add a new route for a specific trunk respectively. There are the following steps listed below:

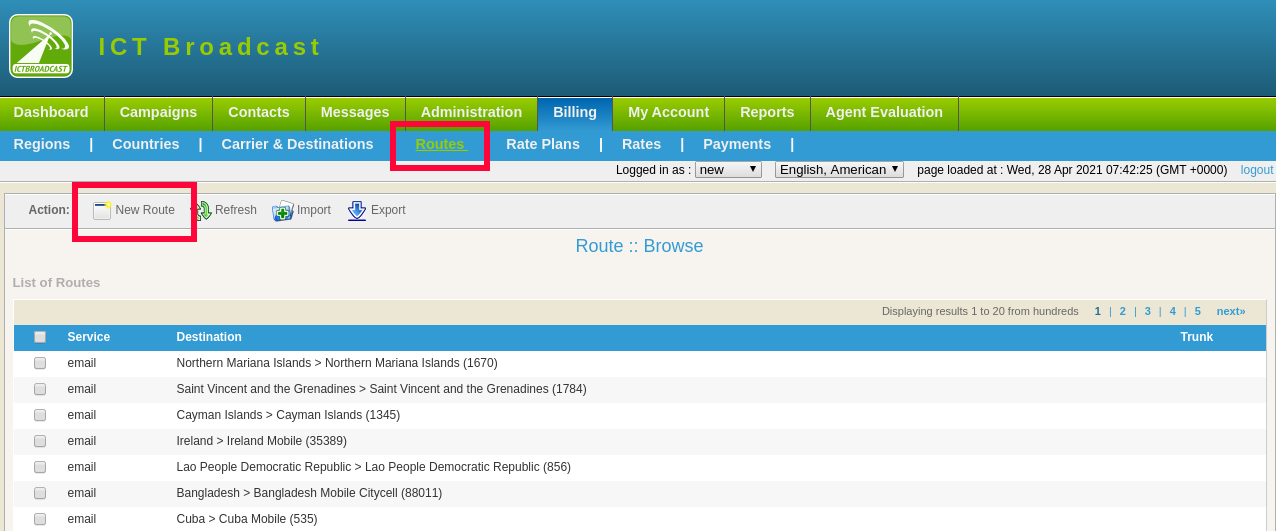

Click on the Billing main menu, then click on the Routes menu. A list of routes, services, destinations, and trunks available on the page.

routes in ICTBroadcast

Add New Route in ICTBroadcast

Click on the new Route button, a route form will open with required fields such as

  • Select services and trunk from drop-down
  • Select region and country from the drop-down
  • Select destination from the available list
  • Click on the Save button, the new route will be added to the list of routes as shown

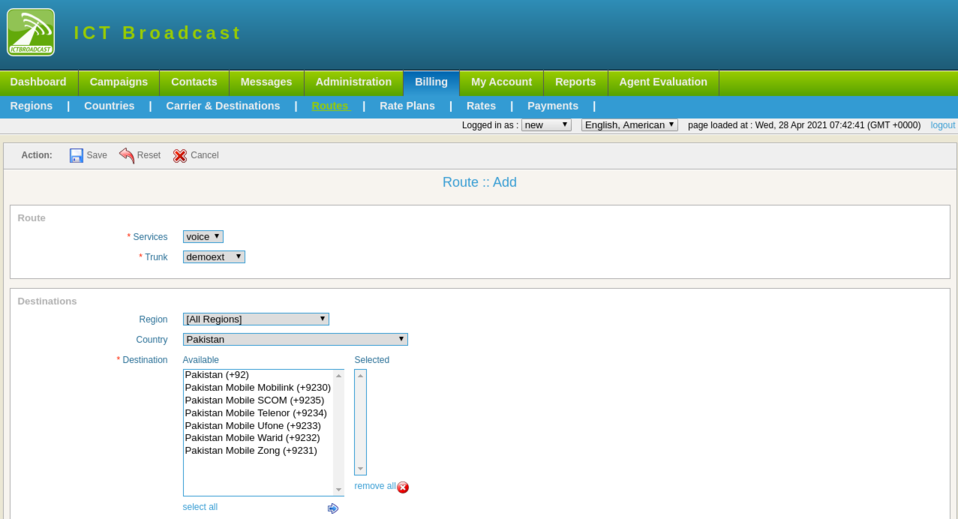

routes form in ICTBroadcast
Rate Plan in ICTBroadcast

Click on the Billing main menu, then click on the Rate Plans menu. A list of rate plans and descriptions available on the page.

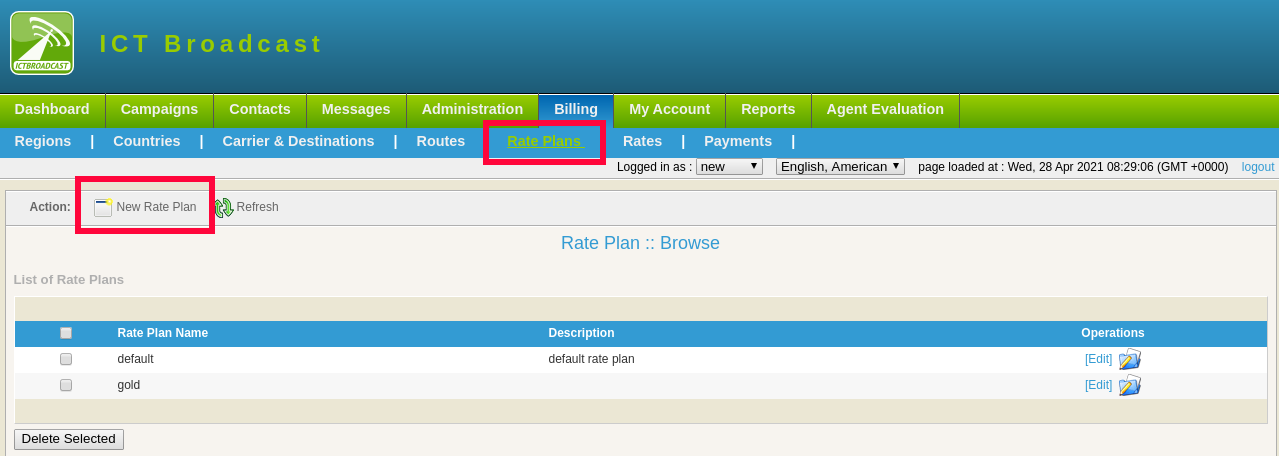

rates plan in ICTBroadcast

Add New Rate Plans in ICTBroadcast

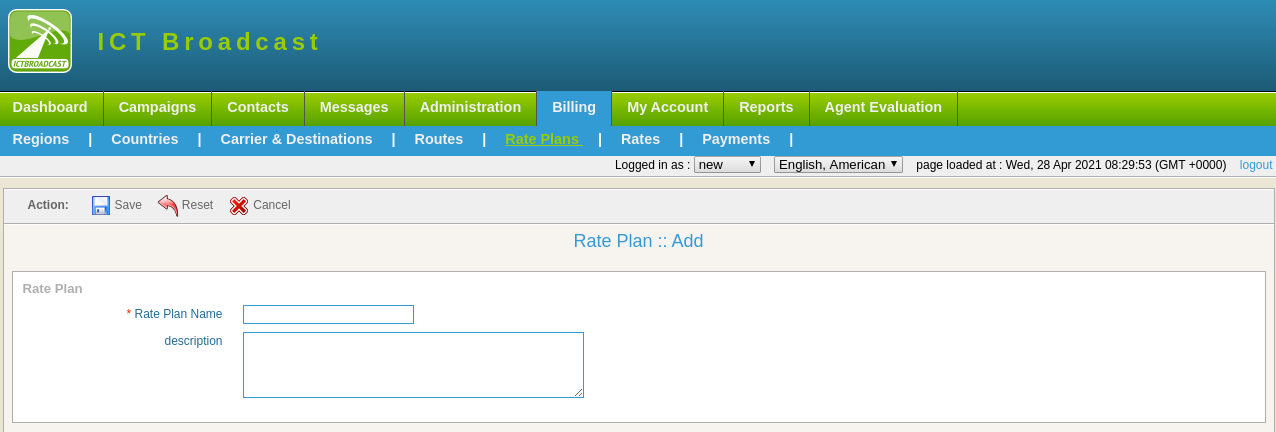

Click on New Rate Plan button, a rate plan form will open with required fields such as:
Write Rate Plan Name in the text box
Write Description about rate plan in the text box
Click on the Save button, new rate plan will be added to the list of rate plans as shown.

rates rates plan form in ICTBroadcast

Rates

Click on billing the main menu, then click on rates menu, A list of rates plan, service, destination, and rates available on-page.

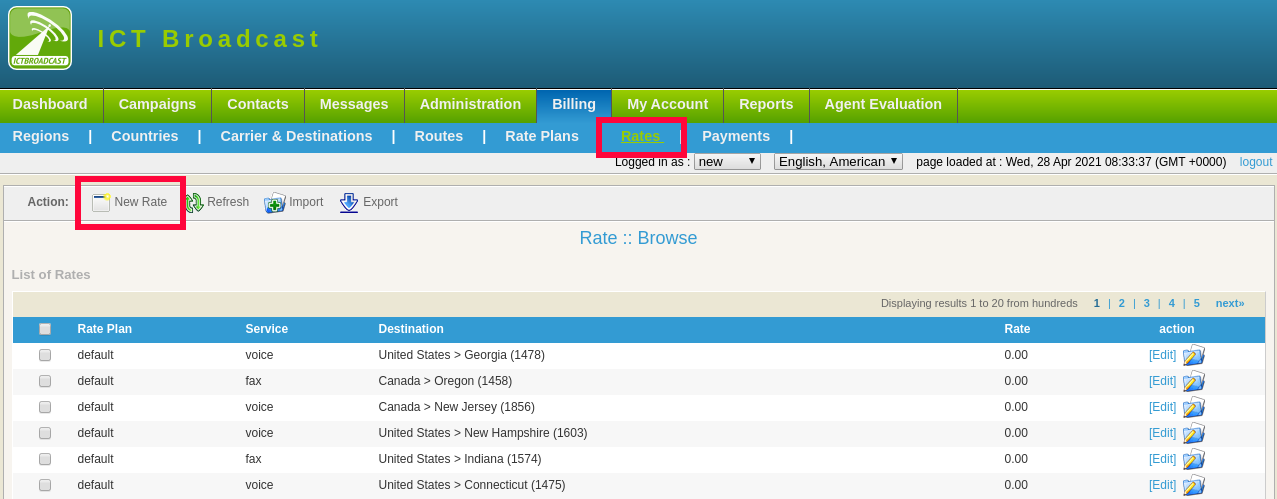

rates in ICTBroadcast

Add New Rates in ICTBroadcast

Click on the new rate button, a rate form will open with required fields such as:

  • Select rate plan and services from the drop-down
  • Select Billing block from the drop-down
  • Set new rate in the text box
  • Select the first interval of call charges from drop-down
  • The select incremental interval of call charges from drop-down
  • Select region and country from the drop-down
  • Select destination from the available list
  • Click on the Save button, new rate information will be added to the list of the rate as shown

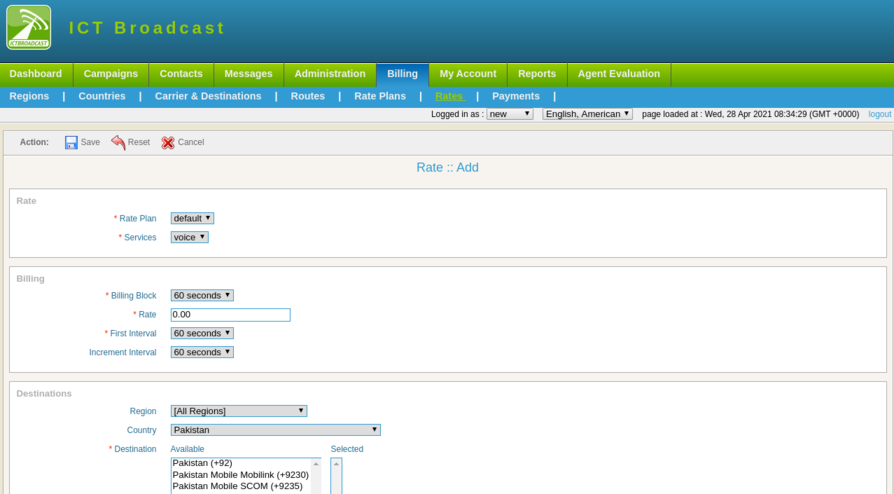

rates-form in ICTBroadcast
